Before beginning installation, review and follow all manufacturer-provided installation and safety instructions for your hardware components. Always refer to the manufacturer’s official documentation to ensure proper setup, safe handling, and compliance with warranty requirements.
Instructions
Step 1: Install Elo Wall Mount
Install the Elo Wall Mount following the manufacturer's instructions:
- Elo 43”-50” Wall Mount Kit: E721949 Install Instructions
- Elo 55”-65” Wall Mount Kit: E727774 Install Instructions
Step 2: Install Rise Vision Media Player.

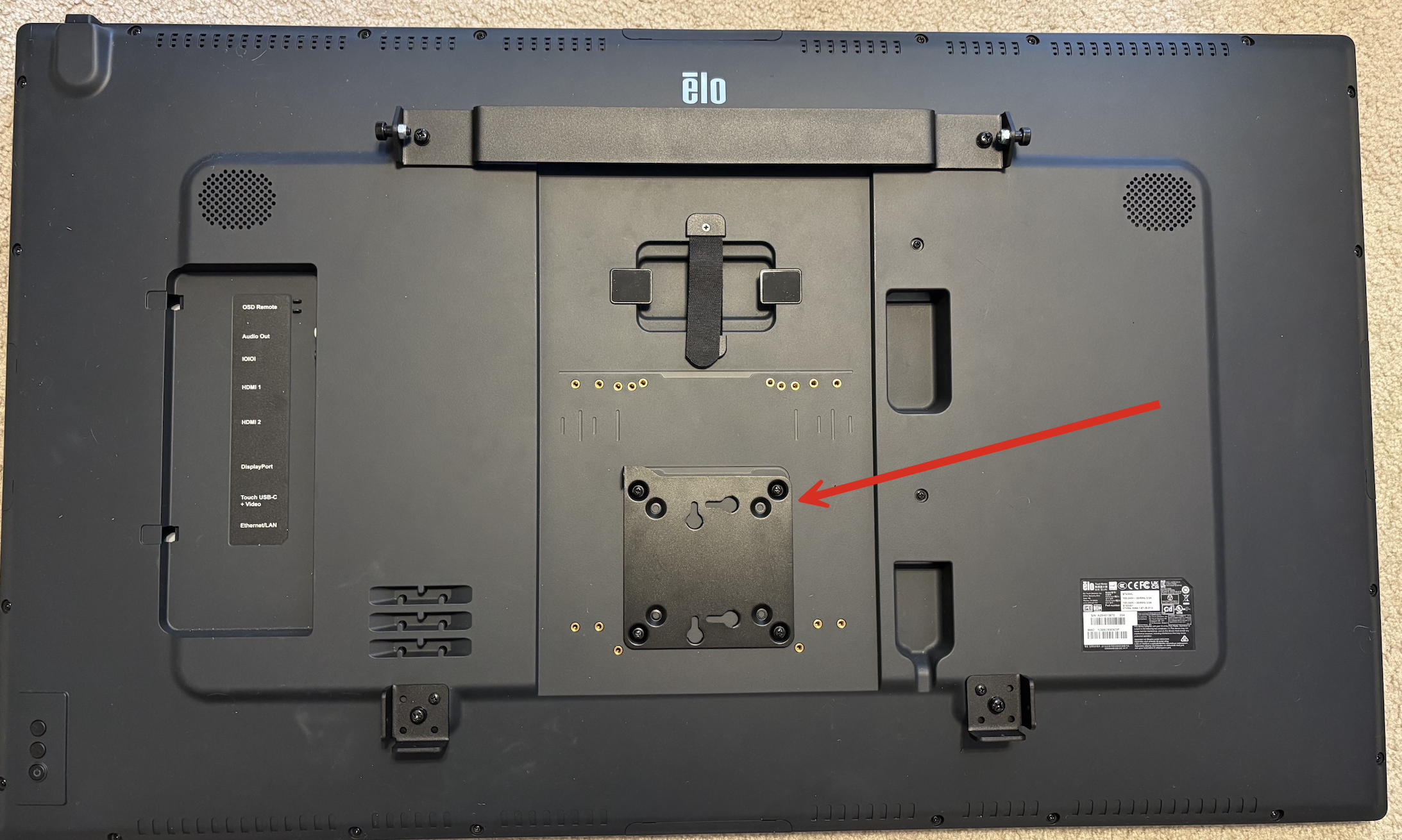

Install the VESA mount included with Rise Vision Media Player on the Elo Screen. Then, install the Rise Vision Media Player. Rise Vision Media Player VESA mount instructions
⚠️ IMPORTANT: Mount the Rise Vision Media Player so that the WiFi antenna will be facing up once the Elo screen is mounted to the wall.

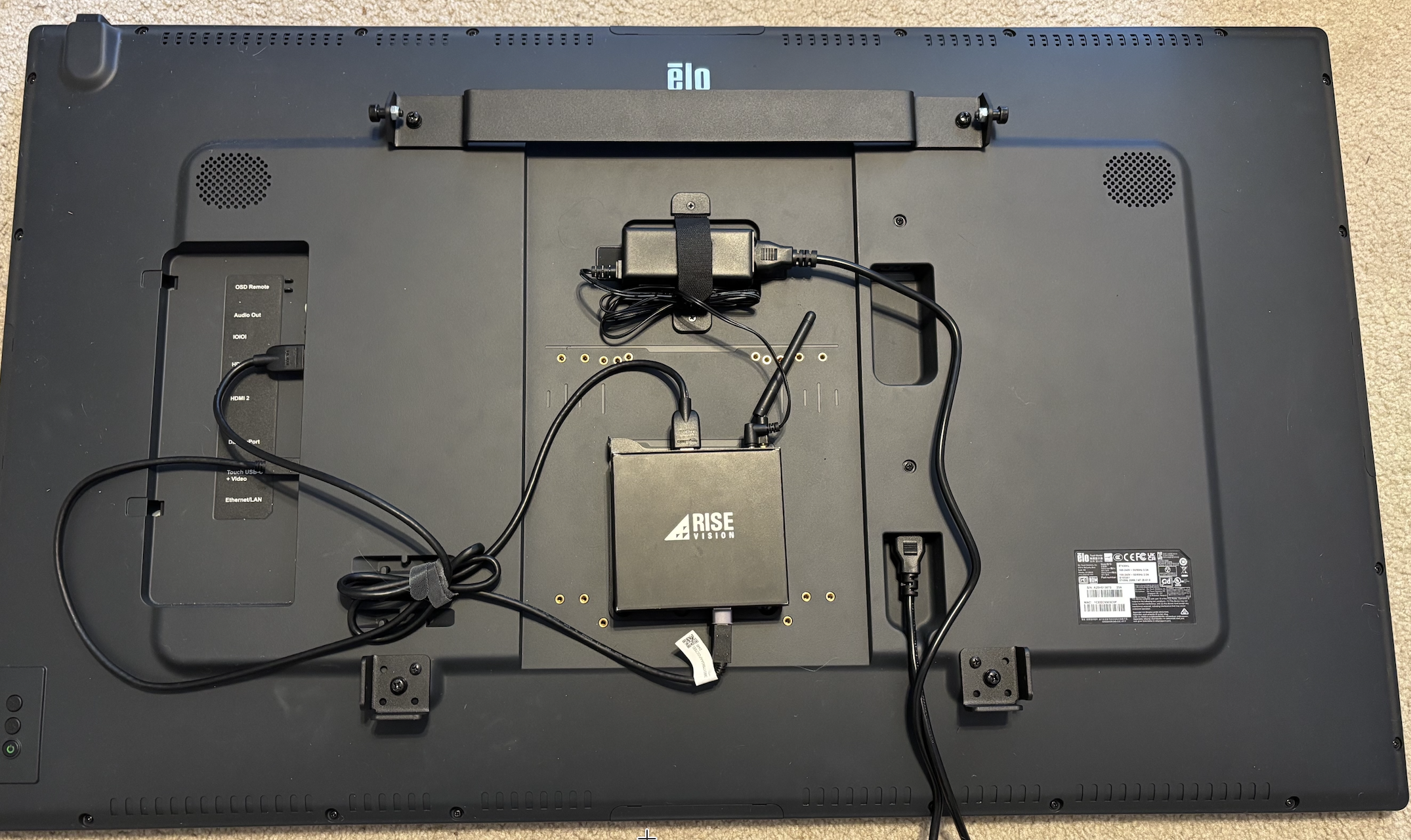

Step 3: Connect HDMI and USB
Connect the HDMI from the Elo screen to the Rise Vision Media Player using the supplied HDMI cable.
Connect the USB port from the Elo screen into a USB port on the Rise Vision Media Player using the supplied USB cable and USB-C adapter included with the Rise Vision Media Player.

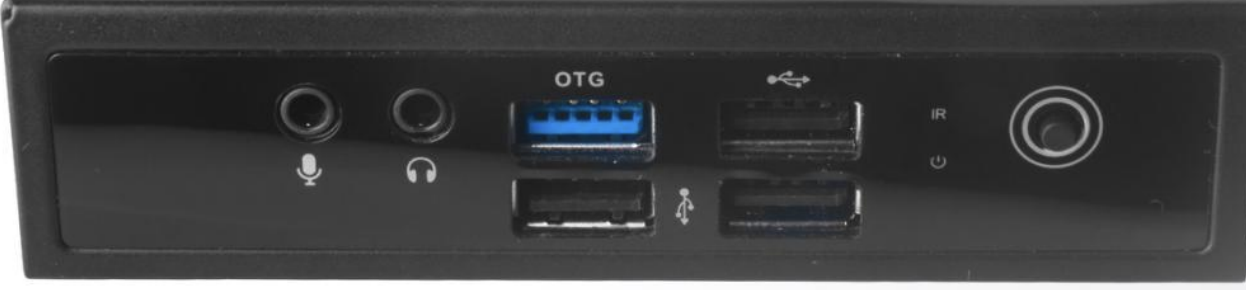

⚠️ IMPORTANT: Do not use the blue USB port on the Rise Vision Media Player—use only the black USB ports.
Step 4: Mount Elo Screen on Wall Mount
⚠️ Safety Note: The Elo display is heavy and fragile. To avoid injury or damage, do not attempt to lift or mount the display alone. Always use at least three people for this step.
With one person holding each side of the Elo display, have the third person plug the power cords for both the Elo screen and the Rise Vision Media Player into the power outlets.
Once power is connected, carefully align and mount the Elo display onto the wall brackets, ensuring it is securely seated before releasing the display.
Step 5: Power On and Activate

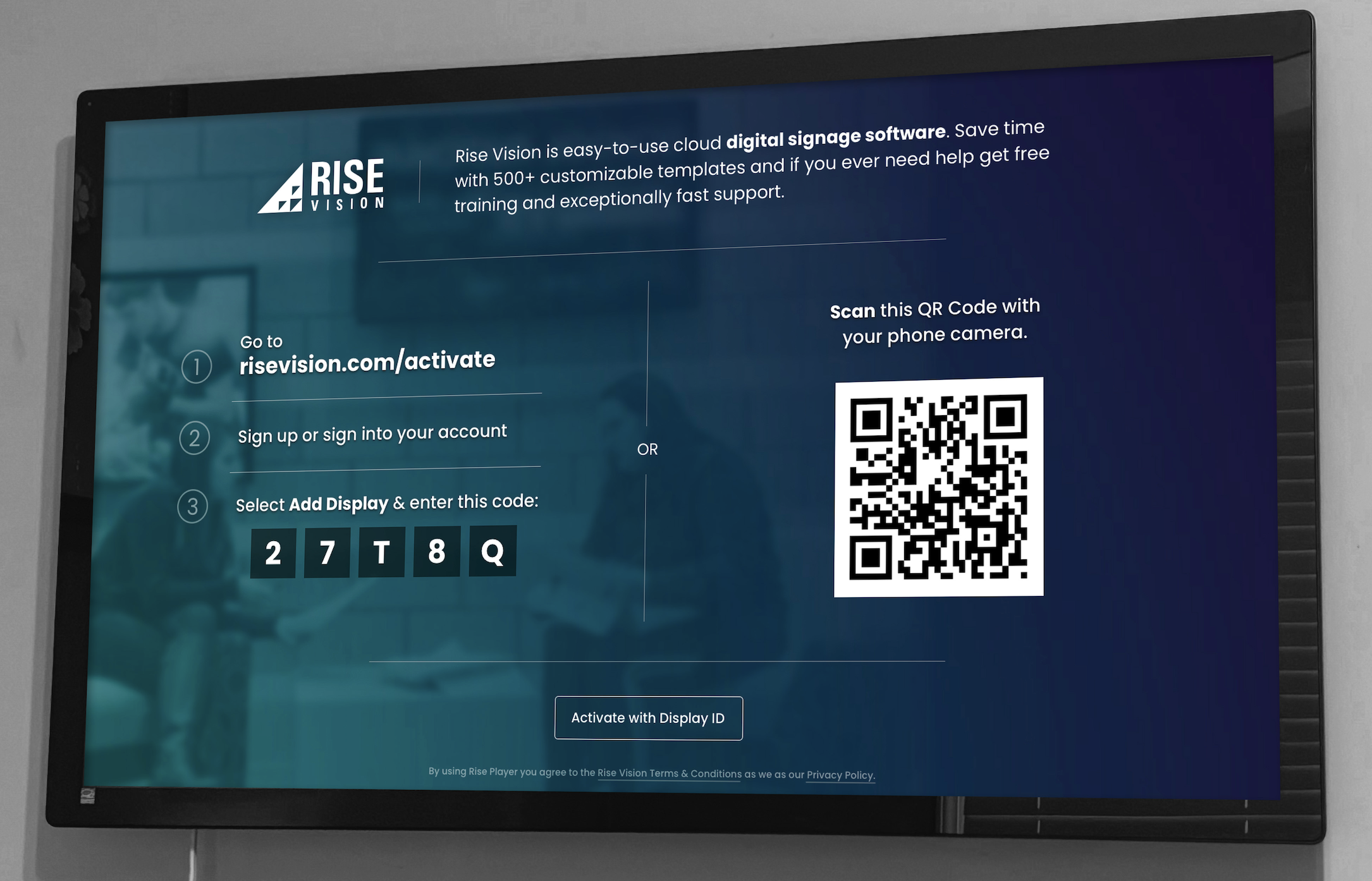

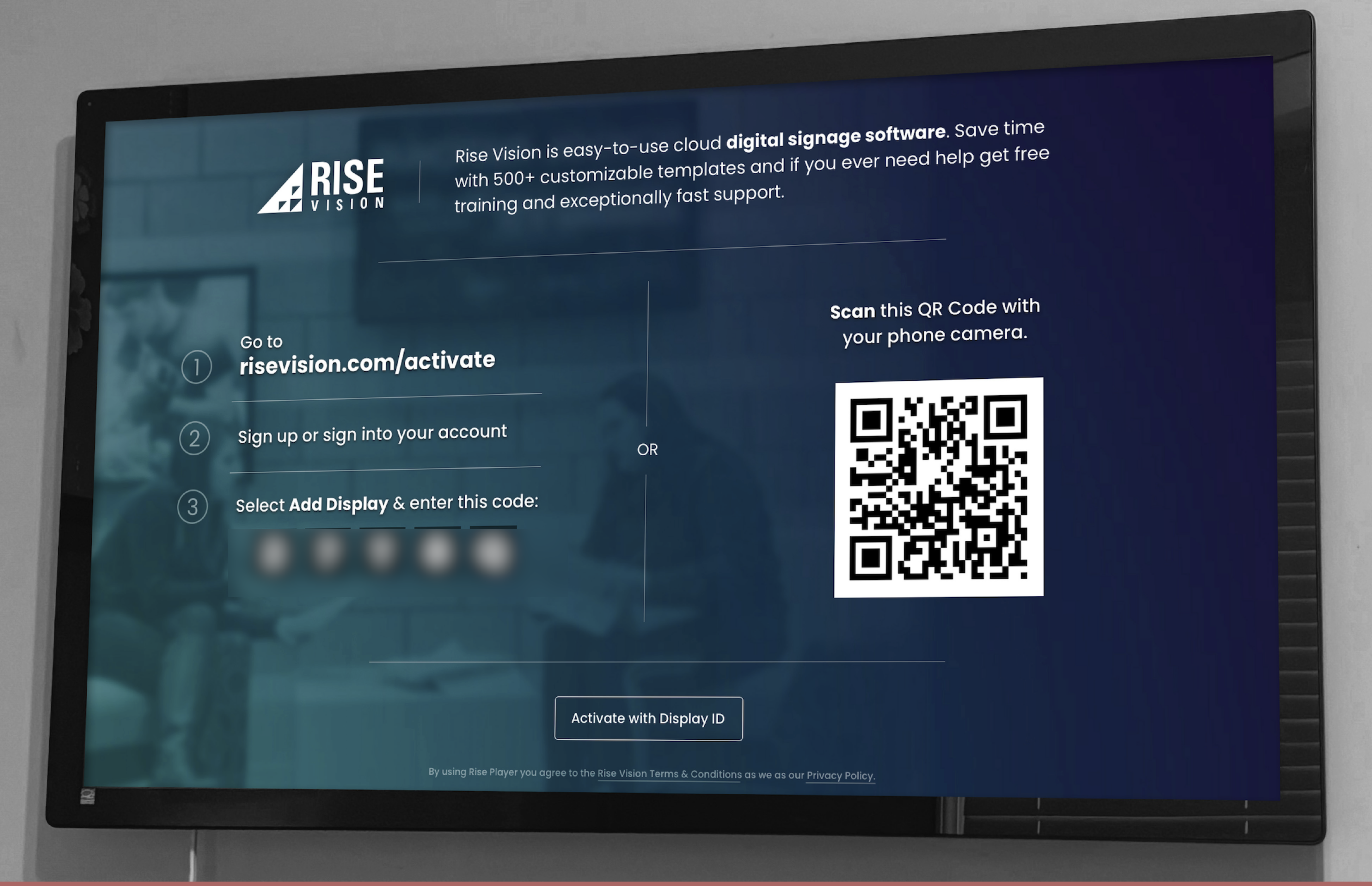

Turn on the Elo screen and follow the on-screen activation process to complete setup.
