This guide explains how to install the VESA mount included with the Rise Vision Media Player so you can securely attach it to the back of a display. You can find PDF instructions for mounting here.
Before You Begin
- Turn off the Rise Vision Media Player.
- Disconnect the power adapter from the electrical outlet.
- Disconnect the power adapter from the media player.
- Remove any connected cables from the media player.
The VESA mount is compatible with the following media players:
- Giada DN76
- Giada DN74

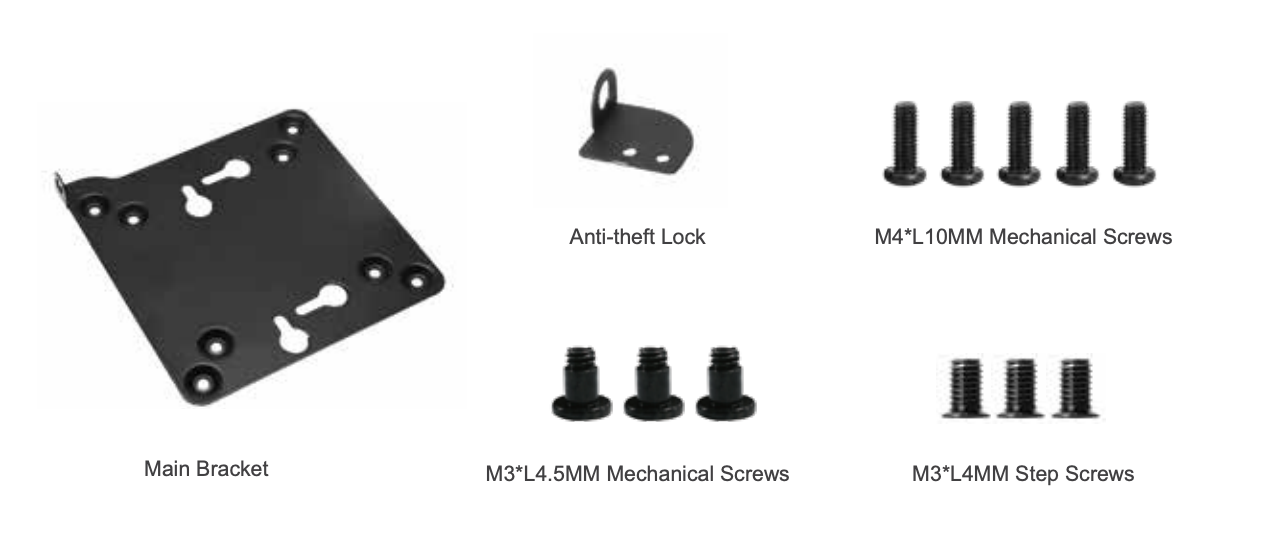

Mounting Materials
- Main bracket
- Anti-theft lock screw
- M4 × L10 mm mechanical screws
- M3 × L4.5 mm mechanical screws
-
M3 × L4 mm step screws
Instructions
-

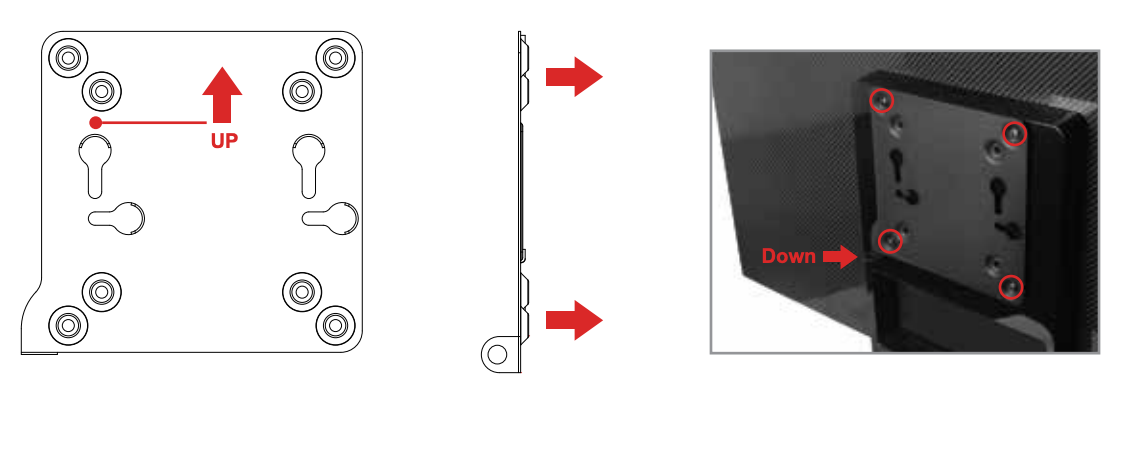

Assemble the Main Bracket (in the direction shown as the following figure) to the rear of a compatible display with four M4 x L10 mm Screws.
-

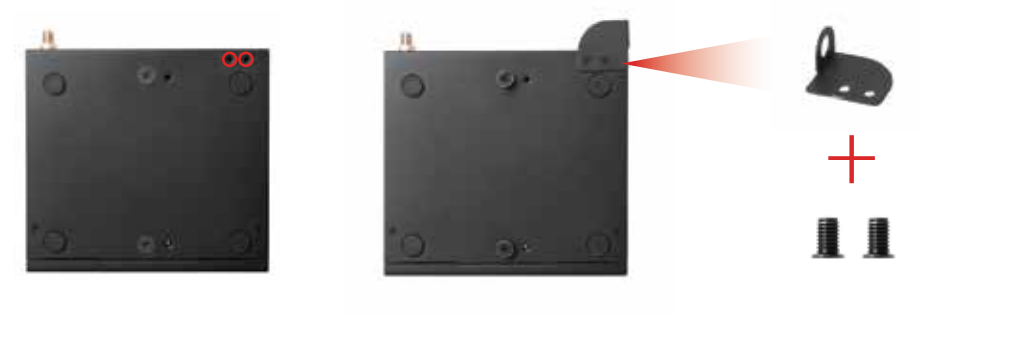

Fix two M3*L4.5MM Step Screws on the media players as shown below.
-
Fix the Theft-proof Lock to the media player with two M3*L4MM Mechanical Screws.
-

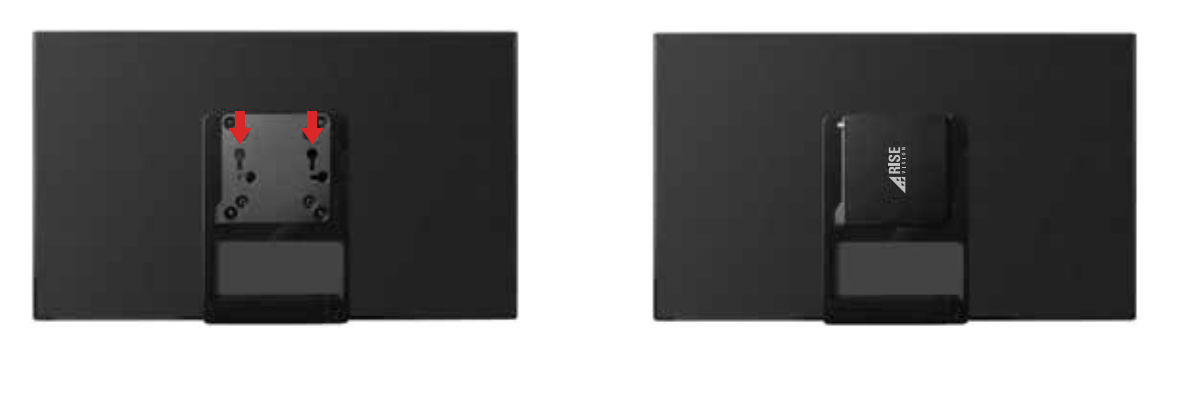

Mount the media player.
-

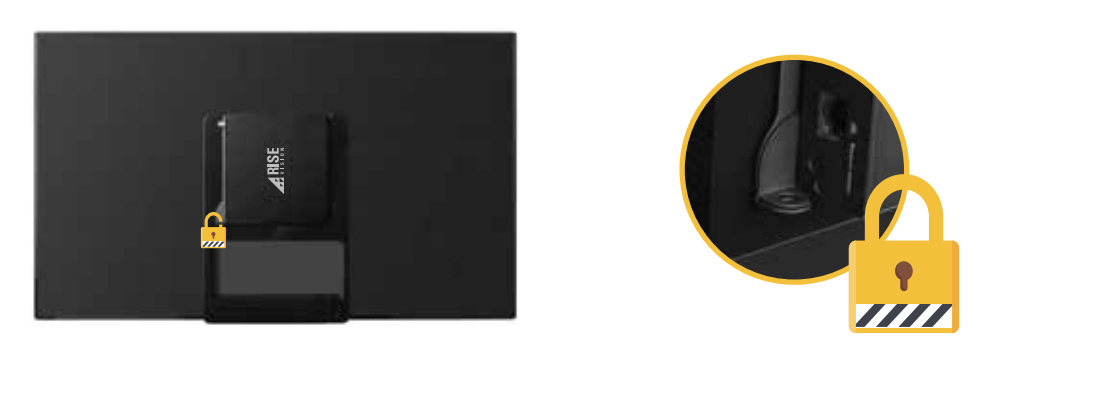

Lock the media player with your own lock, if needed. The installation is completed.
Behavior Notes
- Ensure all screws are tightened securely to prevent the media player from shifting during operation.
- Do not overtighten screws as this may damage the bracket or the display mounting holes.
- Mount the media player in a location that allows adequate airflow around the device.
